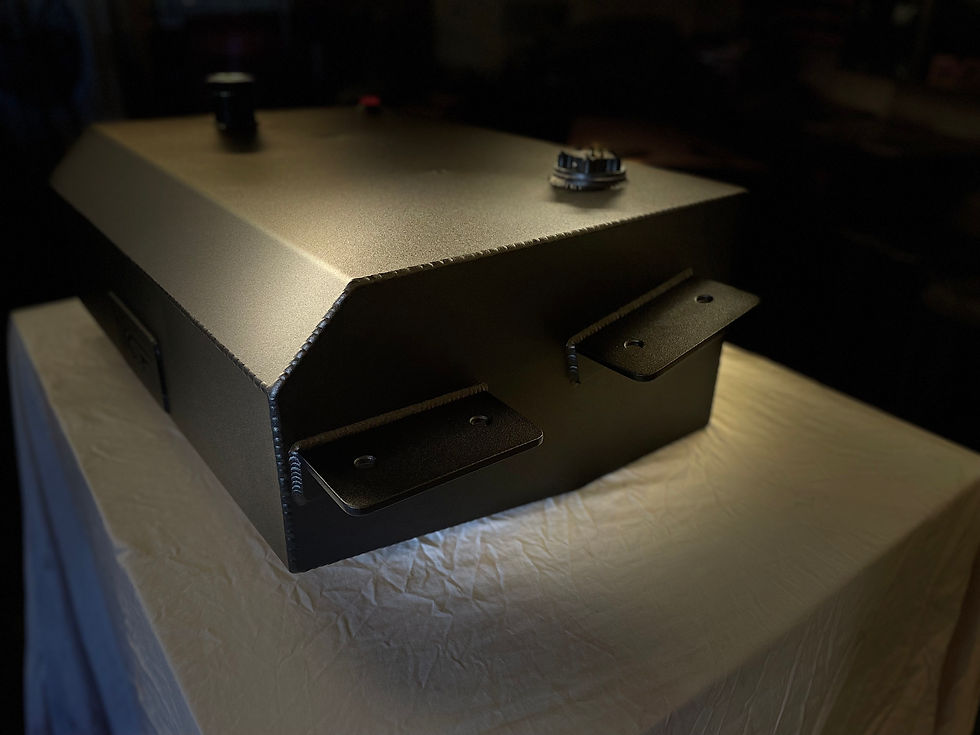

Aluminium Under-bed fuel tank to suit 73-87 GM Pickup Trucks (Squarebody)
FEATURES
Full bolt-in kit, no welding required!
CAD designed, CNC laser cut and folded for presise fitment.
Cross-interlocking, full height internal baffling.
Tig welded using 5052 grade aluminium.
EFI and non-EFI tanks available.
72L capacity, designed to fit under bed floor.
INCLUDES
Fitted with a 90-0 OHM Fuel Sender unit to work with factory gauges.
Supplied powdercoated in our exclusive Textured Black Durable Coating.
Supplied with all fasteners and instructions.

Developed and tested on our own vehicles, designed and manufactured in-house in Brisbane, QLD.

EFI TANKS
EFI Tanks are fitted with our exclusive billet internal pump housing  that accepts 2x40mm in-tank pumps (*pumps not included*). They are supplied with 1xAN10 female fitting welded on the bottom rear of the tank for use as a drain.
NON-EFI TANKS
Non-EFI tanks are supplied without the pump housing or the pump housing flange. They are supplied with 1x AN10 female fitting welded on the bottom rear of the tank for a fuel feed. They are also supplied with 1xAN8 female fitting welded on the top of the tank for breather.
BED FILL OPTION
O-ringed billet cap is supplied. It is designed to sit under the bed floor to allow for an access panel in the bed.
SIDE FILL OPTION
Side fill option allows you to plumb into an already existing or new side fill panel on the bedside. A 90deg 2inch feed pipe is welded on and is designed to clear the chassis rail and bed.
OPEN FILLER OPTION
2" OD, 20mm high filler pipe is welded on for use with a Bed-fill kit. It allows you to clamp on a rubber hose to connect to the Bed-Fill kit.
LOCKABLE BED-FILL OPTION (only available with open filler option)
We offer a lockable Bed-Fill Kit that will mount flush to a timber bed. It is brass construction and chrome plated. We have used these kits with several of our own trucks and customer cars. Supplied with keys, rubber joiner hose and clamps.
